MOBILE TROLLEY

Treat’s Concept Systems: Pioneering Excellence in Modular Clean Room & HVAC Services

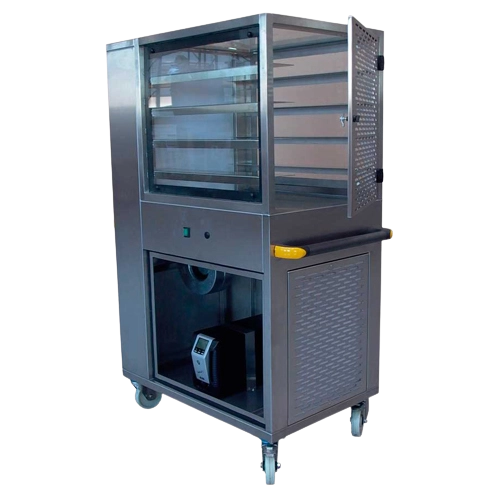

Mobile Trolley is designed for transporting sterile products under ISO Class 5 (Class 100) particle free work area. The work areais continuously supplied with positive pressure HEPA filtered recirculated horizontal air flow.

Mobile trolleys are versatile and convenient tools that can be used for various purposes. They can be found in a range of sizes and designs. Be customized to suit specific needs. These trolleys are typically equipped with wheels, making them easy to move around and ideal for use in various settings, such as hospitals, restaurants, and industrial environments. The mobility of these trolleys adds to their functionality, allowing them to be easily transported from one location to another.

Description – MOBILE TROLLEY
Supply Filter	Imported Miniplate HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.999% for 0.3 micron
Return AirPre- filter	Return Air Pre-filter are made from Non-Woven Synthetic with HDPE mesh; conforms to EU 6 Grade, with an efficiency rating better than 95% down to 5 micron.
Fresh Air Filter	Fresh Air filters are made from Non-Woven Synthetic with HOPE mesh; conforms to EU 4 Grade, with an efficiency rating better than 90% down to 10 micron
Motor blowerassembly	Motor blower designed of statically “and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirement for entire life of HEPA. Pressure Gauge Dwyer Make Magnehelic Gauge (0-25 mm: 1 Nos.) to monitor pressure drop across HEPA.
Door	SS 304 doors with double walled flush glass view panels and door closer
Interlocking	Electro-Magnetic interlocking arrangement to put-off UV Light if either side door opens.
Shelves	SS 304 hanging arrangement (or) removable type shelves
Battery back-up	Battery back-up with inverter for 30 mins
Castrol Wheels	PU coated lackable castor wheels
ON/OFF Switches	SS ON/OFF Switches for motor & lights
Switch socket	6/15 Amp Single phase switch socket use for external equipment
DOP Port	DOP test port at upstream of HEPA filter integrity test. (With PAO Solution)
Handle	SS 304 Handle for mobility
Electrical Supply	230V AC 1-Ø 50HZ/ 415V AC 3-Ø 50HZ
Noise Level	Less than 67 dB on Scale ‘A’ when Ambient is not greater than 55 dB on Scale ‘A’
Vibration Level	Minimum

Optional Accessories

🚀 U.V. Light with Hour Meter

🚀Electro-Magnetic I Mechanical Interlocking. Audio Visual Alarm indicating condition of HEPA filters. Clean down timer with operation hold indicator

🚀VFD based control systems

🚀Magnahelic gauges I Digital pressure gauge to monitor of pressure drop across filter.

🚀Sodium Vapor Lamps

🚀 Flame proof fitting
