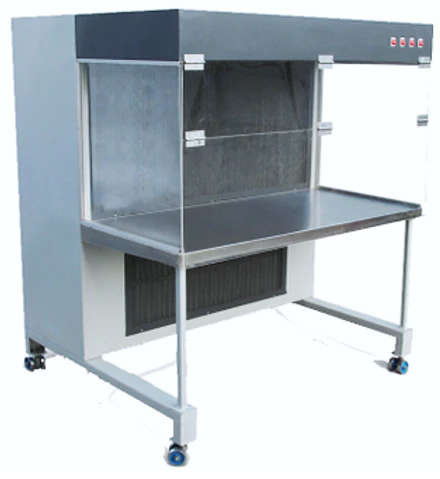

Horizontal Laminar Air Flow Workstation is designed specifically for highest product protection by providing ISO class 5 particle free work area for handling critical process. Themain HEPA Filter is situated immediately behind the working area, cleanairisthen blown acrossthe work surface towardstheoperator. The work area is continuously supplied with positivepressure HEPA filtered horizontal air flow. It prevents contamination from operator and environment to work area. The laminarity of the flow prevents cross contamination between the itemshandled in theworking space
| Description – HORIZONTAL LAMINAR AIR FLOW WORKSTATION | |
|---|---|
| HEPA Filter | Imported miniplate HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.999% for 0.3 mircon. |
| Pre-Filter | Pre-filter are made from Non-woven synthetic with HDPE mesh; conforms to EU-06 Grade, with an efficiency rating filter than 95% down to 5 micron. |
| Motor Blower Assembly | Motor blower assembly designed of statically and sufficient capacity and static pressure to take care of airflow requirment for entire life of HEPA. |
| Pressure Gauge | Dwyer make magnehelic gauge (0-25mm: 1 Nos) to monitor pressure drop across HEPA. |
| Lightning | Fluorescent light with milky white diffuser (250 Lux) at work surface. |
| ON/OFF Switches | SS ON/OFF Switches for motor & lights |
| Switch Socket | 6/15 AMP single phase switch socket use for external equipment. |
| Work Table | SS work table with due reinforcement |
| DOP Port | DOP test port at upstream of HEPA filter integrity test. (With PAO Solution) |
| Electrical Supply | Electric Supply 230V AC 1-Ø 50HZ/415V AC 3-Ø 50HZ |
| Noise Level | Less than 67 dB scale ‘A’ when Ambient is greater than SS dB on scale ‘A’. |
| Vibration Level | Minimum |
Optional Accessories
🚀U.V. light with hour meter SS 304 cock for Gas and Air Audio Visual Alarm indicating condition of HEPA filters.
🚀Clean doen times with operation hold indictor, VFD based control system , Magnahelic gauges.
🚀Sodium vapor lamps, Flam prof fitting.
