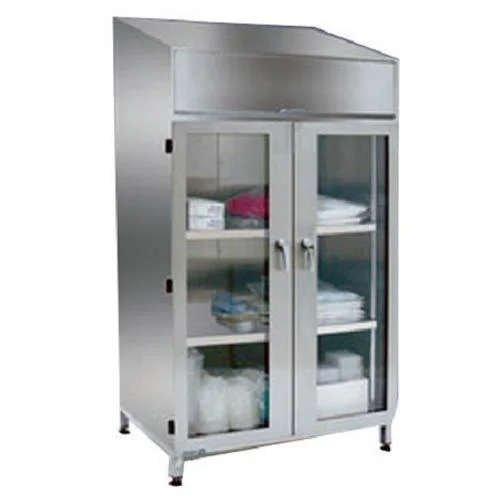

GARMENT CABINET

Treat’s Concept Systems: Pioneering Excellence in Modular Clean Room & HVAC Services

The application of Garment Cabinet is for storing the sterile aprons. The unit is used to avoid the dust contaminations as well as the bacterial growth. Unit is used in pharmaceuticals, Bio-tech, Food, Electronic Industries. The work area is continuously supplied with positive pressure HEPA filteredre circulated air flow.

Garment cabinets are a must-have for anyone looking to keep their clothes organized and in pristine condition. These cabinets come in various shapes. They are a flexible choice for any space because of their various shapes and sizes. They are designed to protect clothes from dust, dirt, and light, all of which can cause color fading and other damage over time. By keeping your clothes neatly tucked away in a garment cabinet, you’ll be able to prolong their lifespan and maintain their quality.

Description – GARMENT CABINET
Supply Filter	imported minipleat HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency ratting better than 99.999% for 0.3 micron.
Pre-Filter	Pre-filter are made from Non-woven synthetic with HDPE mesh; conforms to EU-06 Grade, with an efficiency rating filter than 95% down to 5 micron.
Fresh Air Filter	Fresh Air filters are made from Non-Woven Synthetic with HOPE mesh; conforms to EU 4 Grade, with an efficiency rating better than 90% down to 10 micron
Motor blower assembly	Motor blower designed of statically” and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirement for entire life of HEPA.
Pressure Gauge	Dwyer Make Magnehelic Gauge (0-25 mm: 1 Nos.) to monitor pressure drop across HEPA.
Door	SS 304 doors with double walled flush glass view panels and door closer
Interlocking	Electro-Magnetic interlocking arrangement to put-off UV Light if either side door opens.
Shelves	SS 304 hanging arrangement (or) removable type shelves
Temperature Control	Heater with thermostat for control of temperature in cabinet
On/Off Switches	SS ON/OFF Switches for motor & lights
Switch socket	6/15 Amp Single phase switch socket use for external equipment
DOP Port	DOP test port at upstream of HEPA filter integrity test. ( With PAO Solution)
Vibration Level	Minimum
Electric Supply	Electric Supply 230V AC 1-Ø 50HZ/415V AC 3-Ø 50HZ
Noise Level	Less than 67 dB on Scale ‘A’ when Ambient is not greater than 55 dB on Scale ‘A’

Operation Accessories

🚀U.V. light with hour meter

🚀Electro magnatic/mechanical

🚀Audio visual alarm indicating condition of Optional Accessories HEPA filters

🚀Clean down timer with operation hold indicator

🚀VFD based control systems

🚀Magnahelic gauges / Digital pressure gauge to monitor of pressure drop across filter.

🚀Sodium vapor lamps

🚀Flame proof fitting
