Fan Coil Units are designed specifically for trouble-free and reliable operation and are the quietest in their category. The low height of the unit makes them ideal for low ceiling areas. Units are light in weight, which helps ease installation.

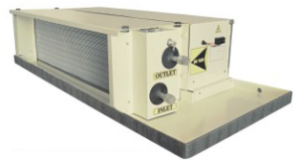

Standard Fan Coil Unit
Units are blow-through type consisting of blower deck, coil deck, insulated drain pan and filter. For rigid and robust construction entire unit casing is manufactured with heavy gauge galvanized sheets.

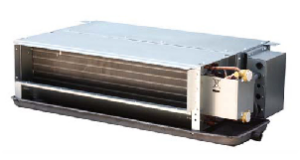

Standard Fan Coil Unit
They use the most advanced technology by computerized selection and designing of coils for the most efficient operation/heat transfer. The coil deck consists of multi-rows deep chilled water / D.X. coil. Coils are made from seamless copper tubes tightly bonded to equally spaced aluminum fins for better heat transfer. The coil deck is insulated from the inside to prevent condensation.
Decorative Vertical Exposed
The blower deck is attached to the coil deck. It consists of forward curved double inlet double width centrifugal blower/fans. These fans are statically and dynamically balanced for silent running operations. Blowers are mounted on the extended shaft of the motor and can be removed easily.
Double Skin Fan Coil Unit
Independently, a removable drain pan is insulated from heavy gauge galvanized sheets with an inside surface painted and the outside surface to avoid condensation. The drain pan is designed as an extended type to accommodate coil ends, the connection, valves etc. Sandwich-insulated drain pan and S.S. drain pan are also available as optional.
Thermostat
2/3 Way Valve
Motors are fractional horsepower, ps capacitor type extended shaft 3-speed motors suitable for single phase, 220v, 50 Hz ac supply.
Filters are with HDPE media, washable/cleanable type and can be easily removed for cleaning purposes
Grommets are provided for unit mounting. The three-row deep coil is a standard feature—computerized coil selection for the most efficient performance. Manual air vents are provided in all coils.
Flare nut connections are provided at the coil inlet and outlet. Units with higher filtration levels can be used for clean room applications also.
Low vibration and noise. Less power consumption. Due to the flare nut connection at coil ends, installation time is reduced. Units are also coming with customized optional features. It can be removed easily from its application place because of its lightweight.
FCU can be provided with fan & coil controls for better power saving. They can also be provided with 2/3-way on-off motorized/manual valves. Manual or automatic fan speed selection, energy saving mode activation by just 1 button. An automatic or manual 3-speed control mode for the fan speed is available.
Energy saving – yes
Hotels, hospitals, corporate offices, malls, shopping centres, and residential buildings are among the best places to use fan units.
