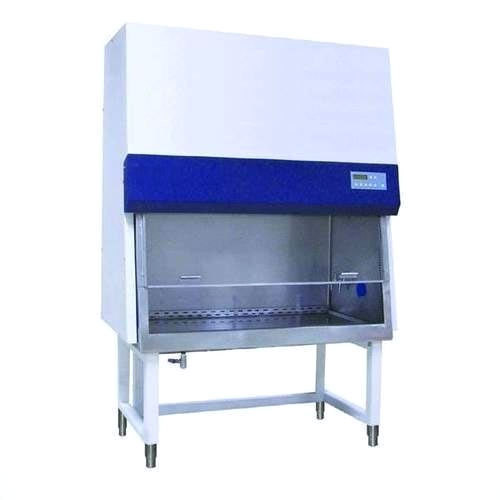

Biological Safety Cabinet Class II Type A2 provide personnel, environmental and product protection. Air flow is drawn aroundthe operator into the front grill of the cabinet, which provides personnel protection. In addition, the downward laminar flowof HEPA-filtered air provides product protection by minimizing the chance of cross-contamination along the work surface of thecabinet. Because cabinet air has passed through the exhaustHEPA filter, it is contaminant-free (environmental protection).
A bio-safety cabinet is essential for laboratories and other settings that work with hazardous materials. Also known as a biological safety cabinet, this device provides a safe and sterile work environment for scientists and researchers who handle potentially infectious or dangerous substances. Bio-safety cabinets trap contaminants using high-efficiency air filters and prevent exposure to hazardous materials by creating a barrier that separates the person from the sample physically.
| Description – BIO-SAFETY CABINET | |
|---|---|
| Supply Filter | imported miniplate HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency ratting better than 99.999% for 0.3 micron. |
| Exhaust HEPA filter | Imported miniplate HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.999% for 0.3 micron. |
| Pre-Filter | Pre-filter are made from Non-woven synthetic with HDPE mesh; conforms to EU-06 Grade, with an efficiency rating filter than 95% down to 5 micron. |
| Motor Blower Assembly | Motor blower assembly designed of statically and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirment for entire life of HEPA. |
| Differential Pressure Gauge | Dwyer Make Magnehelic Gauge (0-23mm:2 Nos) to monitor pressure drop across HEPA & Intermediate filter and (0-10 mm 1 No.) across prefilter. |
| Lightning | Fluorescent light (250 Lux) at work surface. |
| ON/OFF Switches | SS ON/OFF Switches for motor & lights |
| SS 304 Work Table | SS 304 work table with perforations at front & back which can be removed occasionally for cleaning purpose. |
| Front Door | 1-piece fully openable sliding toughened glass with counterweight arrangement. |
| Door Opening Alarm | Alarm triggers in care front door is raised more than 8″ (i.e. safe clear door opening during operation) |
| Exhaust Duct | SS 304 1 ft long elbow duct for exhaust. |
| Side Panel | Double walled flushed glass side panels. |
| Electrical supply | Electric Supply 230V AC 1-Ø 50HZ/415V AC 3-Ø 50HZ |
| Noise Level | Less than 67 dB on Scale ‘A’ when Ambient is not greater than 55 dB on Scale ‘A’ |
| Vibration Level | Minimum |
Operation Accessories
🚀SS 304 cock for gas and air
🚀Foldable polycarbonate front door
🚀Audio visual alarm
🚀Clean with timer with operation hold indicator VFD based control system
🚀Magnahelic gauges, sodium vapor lamps
🚀Flame proof fitting
🚀Safe change Bag in/Bag out arrangement for filet front door with gloves and gloveport arrangement
🚀Transfer hatch for material movement. PLC based control system.
