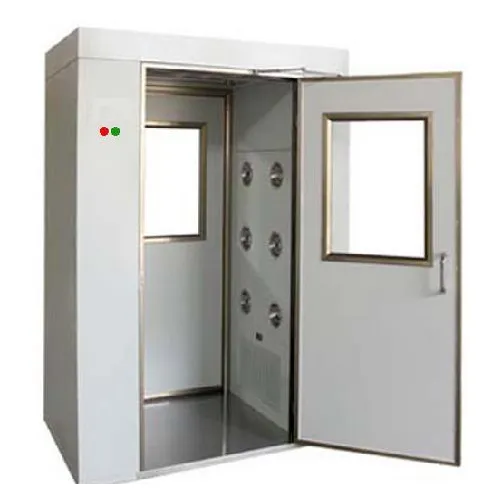

Air Showeris designed to supply Class 100HEPA filtered air athigh velocity it helps remove particulate matter from the personnel entering into the clean room. Air shower works aspartial clean equipmentinstalled at the partition between theclean room and non-clean roomsto shower the personnel ormatters before entering the clean area. This units helps to remove dust effectively and maintains the normal working status. Air Shower is available I variousstandard dimensions also our cabinet can be custom engineered to fit any size. These units are available in powder coated Mild Steel/ SS 304or combination ofboth.
An air shower is a type of cleanroom equipment designed to remove particles and contaminants from people or objects before entering a controlled environment. It blasts air onto the person or object, which dislodges any particles or surface contaminants. The air shower typically contains several nozzles, which direct the airflow from all angles to ensure a thorough cleaning.
| Description – AIR SHOWER | |
|---|---|
| Supply Filter | imported minipleat HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency ratting better than 99.999% for 0.3 micron. |
| Pre-Filter | Pre-filter are made from Non-woven synthetic with HDPE mesh; conforms to EU-06 Grade, with an efficiency rating filter than 95% down to 5 micron. |
| Motor Blower Assembly | Motor blower assembly designed of statically and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirment for entire life of HEPA. |
| Pressure Gauge | Dwyer make magnehelic gauge (0-25mm: 1 Nos) to monitor pressure drop across HEPA. |
| Lightning | Fluorescent light (250 Lux) at work surface. |
| ON/OFF Switches | SS ON/OFF Switches for motor & lights |
| Switch Socket | 6/15 AMP single-phase switch socket use for external equipment. |
| Control System | Interlocking system to ensure that both the doors cannot open at the same time & to ensure that both the doors stay locked during the time of air flow. |
| DOP Port | DOP test port at upstream of HEPA filter integrity test. ( With PAO Solution) |
| Electrical supply | Electric Supply 230V AC 1-Ø 50HZ/415V AC 3-Ø 50HZ |
| Noise Level | Less than 67 dB on Scale ‘A’ when Ambient is not greater than 55 dB on Scale ‘A’ |
| Vibration Level | Minimum |
| Time Setting For Air Shower | Time setting for air shower operation time (settable for 30 seconds to 5 minutes) |
| Emergency Operation | Emergency stop will be provided. |
| Door Opening | Straight entry straight exit and 90 degree door opening. |
| Operation Mode | Automatic as well as manual mode. |
| Door | SS 304 doors with double walled flush glass view panels and door closer. |
Operation Accessories
🚀Audio Visual Alarm indicating condition of HEPA filter.
🚀Clean down timer with operation hold indicator.
🚀VFD based control system.
🚀Magnahelic gauges/Digital pressure gauge to monitor of pressure drop across filter flame proof fitting.
